Our Equipment Fleet

One of Saudi Arabia's most comprehensive survey equipment fleets — 50+ instruments ready for rapid deployment, 3–7 day mobilization anywhere in the Kingdom.

30+ GNSS Receivers 3 Laser Scanners 2 Drone Platforms Mobile LiDAR GPR System
50+
Total Instruments
30+
GNSS Receivers
10+
Fleet Vehicles
3-7 Days
Mobilization Time
Positioning & Control

GNSS & Survey Control

High-precision positioning and total station networks for control, demarcation, and topographic surveys. Our 30+ GNSS fleet enables simultaneous multi-city deployment — proven across 5 cities in a single campaign.

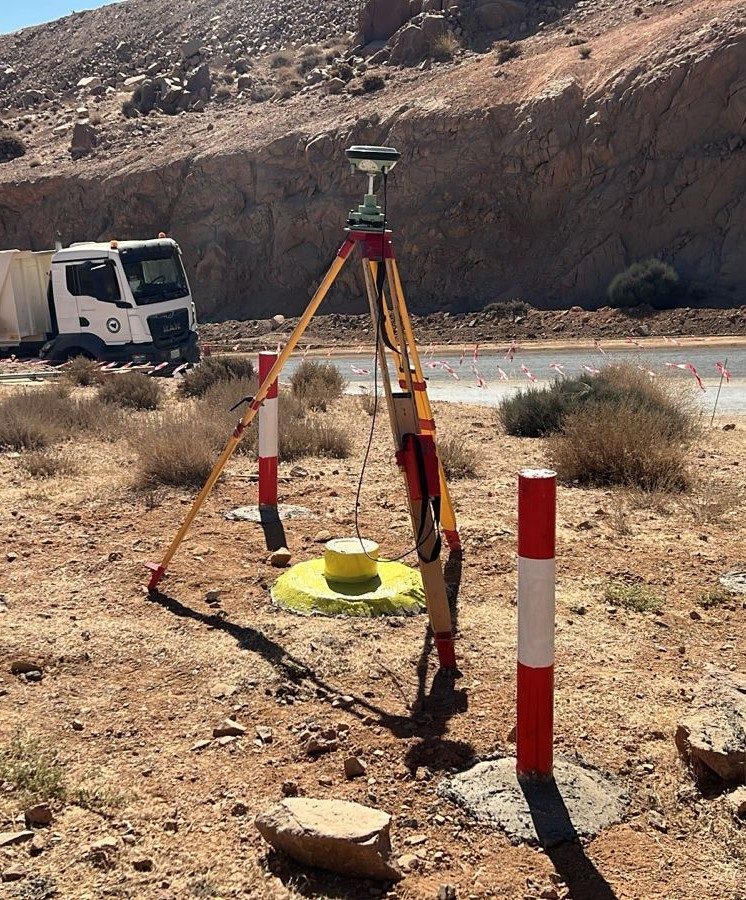

Leica GNSS Base Station in the field

GNSS Receivers

Leica GS16, GS14, GS18 • Trimble R12i 30+ Units
Static Accuracy±3-5mm + 0.5ppm
RTK Accuracy±1-2cm H / ±2-3cm V
ProcessingLeica Infinity, TBC

Control networks, demarcation, topo surveys, construction staking, GCP for aerial mapping.

Total Stations

Leica TS06, TS16 • Trimble S7
Angular Accuracy±2-5"
Linear Accuracy±3-8mm
Range300-500m (reflective)
FeaturesRobotic, laser plummet

Construction monitoring, as-built surveys, precise staking, property demarcation.

3D Capture

3D Laser Scanners

Millimeter-accurate point clouds for scan-to-BIM, as-built documentation, and facility surveys. From terrestrial tripod scanners to wearable mobile systems — we deploy the right tool for every environment.

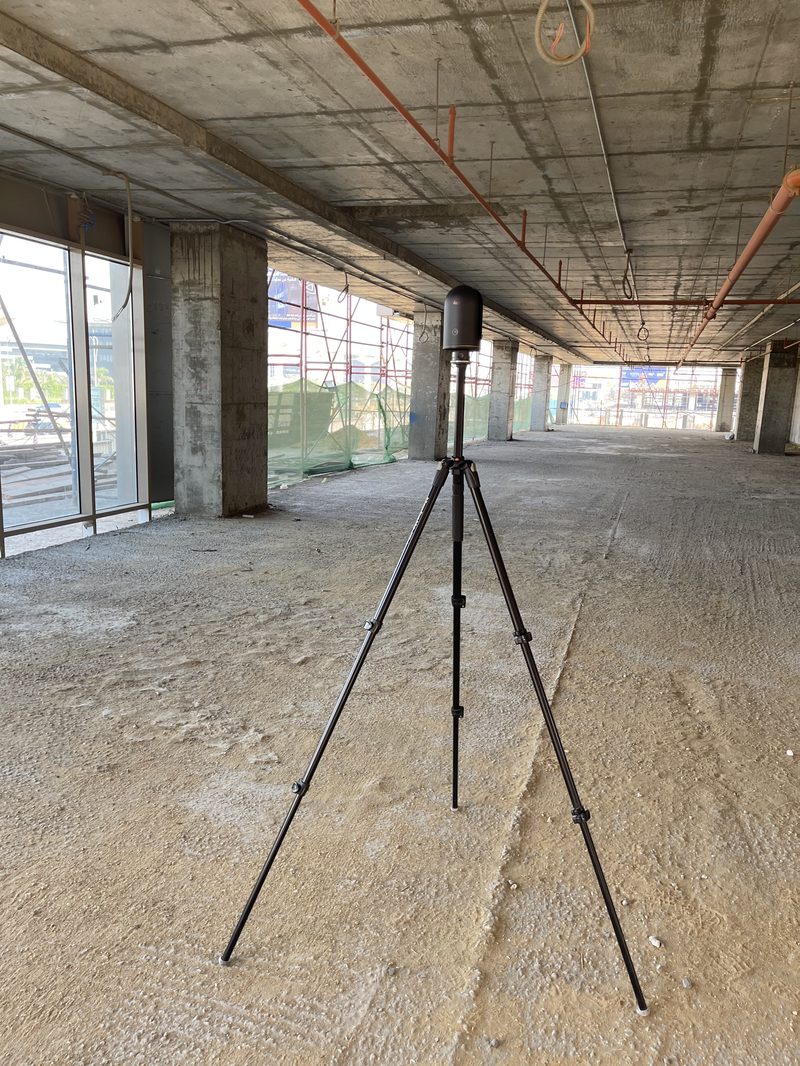

Laser Scanner on construction site

Leica RTC360

Terrestrial Laser Scanner Primary
Capture Rate2M pts/sec
Accuracy±1-2mm @ 10m
RangeUp to 130m
RegistrationAutomatic, real-time

Building interiors, tunnel surveys, as-built BIM, facility documentation.

Faro Focus S350

Long-Range Laser Scanner
Capture Rate1M pts/sec
Accuracy±3-6mm @ 25m
RangeUp to 150m (outdoor)

Industrial plants, outdoor facilities, large structures, construction progress.

NavVis VLX3

Wearable Mobile Scanner
Capture Rate2M pts/sec
Accuracy±5-10mm
MobilityWalk-through corridors, stairs

Building walkthroughs, heritage documentation, facility mapping, interior surveys.

Aerial Mapping

Drone Fleet

GACA-certified fixed-wing and rotary-wing platforms for mapping, LiDAR, and photogrammetry at scale. Proven at 2,400m elevation at Trojena, delivering 500+ hectares per day coverage.

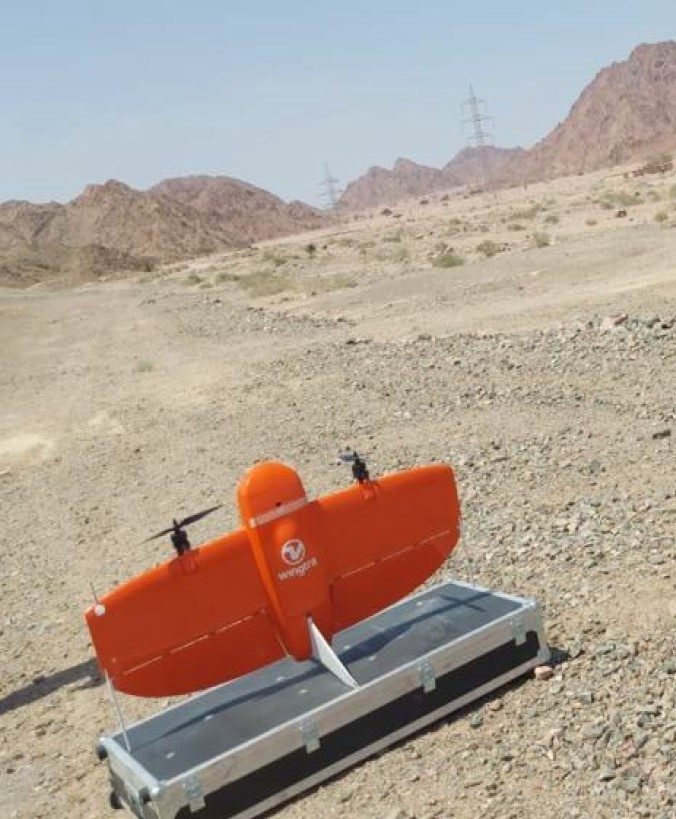

Wingtra One GEN2 Fixed-Wing Drone

Wingtra One GEN2

Fixed-Wing VTOL 500+ ha/day
Coverage500+ hectares/day
CameraSony full-frame 45MP
GSD2-5cm @ 400m AGL

Large-area mapping, orthophoto mosaics, site surveys, photogrammetry.

DJI Matrice 350 RTK

Multi-Rotor + Zenmuse L2 LiDAR
RTK Accuracy±2cm H / ±3cm V
SensorsLiDAR + RGB Camera
Flight Time35 min (full payload)

LiDAR point clouds, terrain mapping, construction progress, high-precision control.

✓

GACA Certified: All drone operations comply with Saudi General Authority of Civil Aviation regulations. Certified for operations at 2,400m+ elevation. Night flight and BVLOS permissions available.

Vehicle-Mounted LiDAR

Mobile Mapping Systems

Rapid 3D data capture at highway speeds. Our vehicle-mounted LiDAR system captures 200 km of road corridor per day, delivering dense point clouds and high-resolution imagery for infrastructure and urban projects.

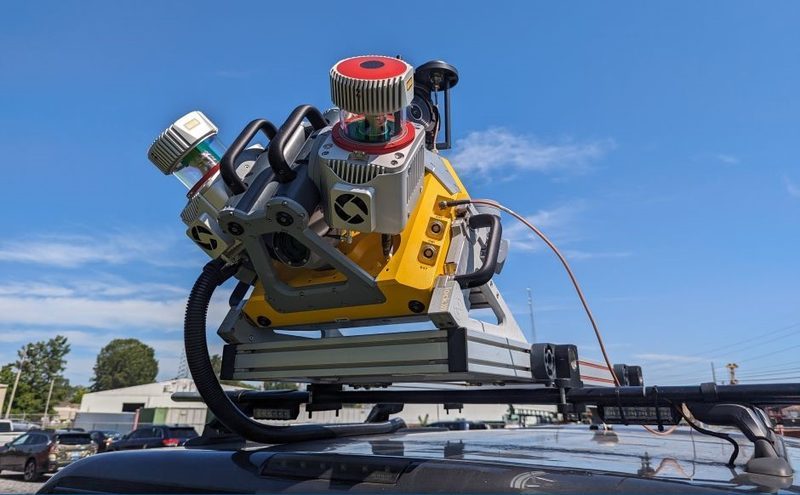

GreenValley LiMobile M2 mounted on vehicle

GreenValley LiMobile M2

Vehicle-Mounted 32-Line LiDAR 200 km/day
Capture Speed200 km/day @ 30 km/h
Accuracy±2cm H / ±3cm V
Point Density100+ pts/m²
OutputLAS, LAZ, E57, DXF

Weekly construction monitoring, road surveys, urban mapping, infrastructure as-built documentation.

Orbit Processing Software

MMS Data Processing Suite
TrajectoryReal-time optimization
RegistrationAuto + manual refinement
GeoreferenceINS/GNSS integrated

Point cloud processing, colorization, filtering, change detection analysis.

Subsurface Detection

Ground Penetrating Radar

Non-destructive subsurface detection for utilities, voids, and structural assessment. Detects both metallic and non-metallic targets to 5m depth — essential for safe excavation planning on every mega-project.

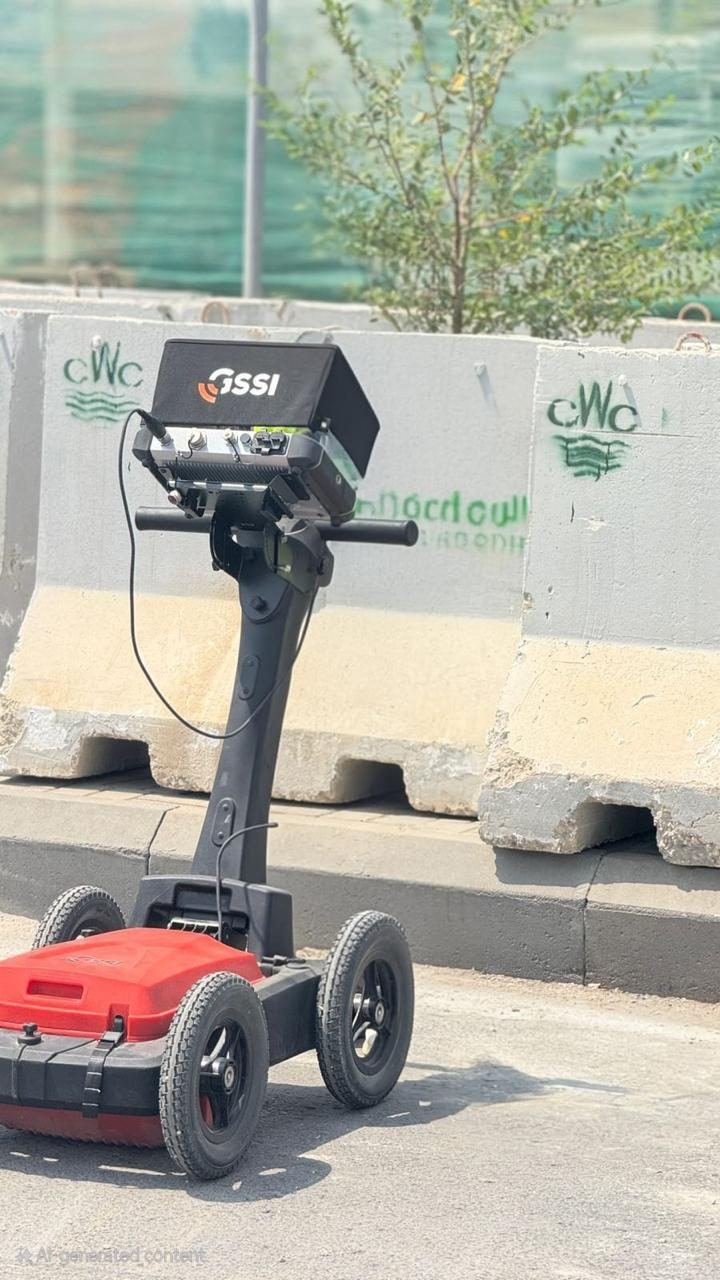

GSSI GPR unit being operated on site

GSSI 350 HS + LineTrac EML

Ground-Coupled Impulse Radar
PenetrationUp to 5m (soil dependent)
DetectionMetallic, non-metallic, voids
Survey Speed20+ km/day (linear)

Utility mapping, struck-by prevention, concrete slab assessment, void detection, archaeological surveys.

ISO 17123 Certified

Calibration & Maintenance Workshop

Our dedicated facility in Tabuk is the first ISO 17123-certified calibration workshop near NEOM — serving the entire Northern Region with professional calibration, repair, and maintenance services for all survey equipment.

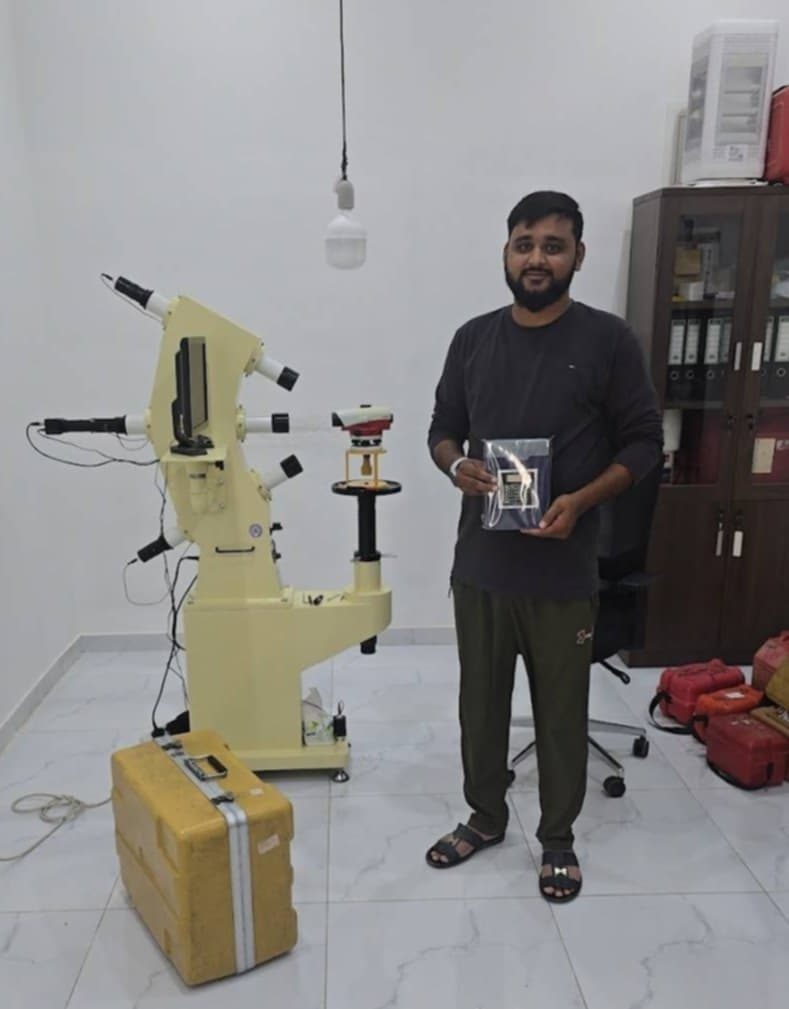

Calibration workshop with collimator

Total Station Calibration

ISO 17123-3

Electronic collimation, angle measurement, distance calibration, and standard mark testing.

GNSS Receiver Verification

ISO 17123-8

Antenna phase center offset measurement, multipath testing, and RTK accuracy verification.

Level & Rod Calibration

ISO 17123-2

Collimation and sensitivity testing for optical and digital levels.

Software

Professional Processing Suite

Industry-leading tools for every stage of the geospatial workflow.

BIM & CAD

  • Autodesk Revit (LOD 300-500)
  • AutoCAD Civil 3D
  • Navisworks
  • CloudCompare

GIS & Spatial

  • ArcGIS Pro
  • QGIS (advanced)
  • FME (data transformation)
  • Global Mapper

Point Cloud

  • Leica Cyclone REGISTER 360
  • CloudCompare
  • Agisoft Metashape
  • Pix4D

Survey & Control

  • Leica Infinity
  • Trimble Business Center
  • Orbit MMS
  • Waypoint (GNSS PP)

Need Equipment for Your Project?

Request crew rental, equipment lease, or full outsourced survey services. We mobilize in 3–7 days, anywhere in Saudi Arabia.

Request a Quote Crew Rental Services
💬
